HDBaseT™ Extender Set - 70m (4K up to 40m), Bi-directional IR, Bi-directional PoC
Our HEX70B-KIT 4K HDBaseT™ extender set offers market leading features and outstanding value. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.
• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency • Enhanced slimline chassis • Extends HDMI 1080p up to a distance of 70m over a single CAT cable • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0) • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission • Bi-directional IR pass-through • Supplied with Blustream IR receiver and emitter • Supports Bi-directional PoC to power extenders from either transmitter or receiver end • HDCP 2.2 compliant with smart EDID management
Box Contents

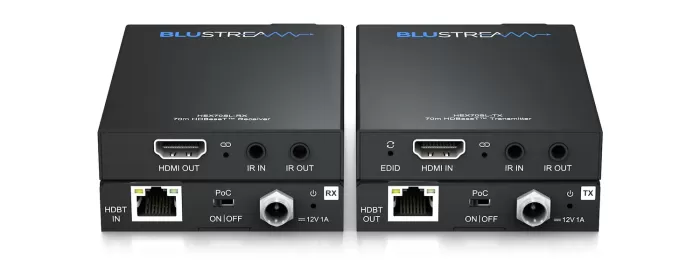

1 x HEX70SL-TX 1 x HEX70SL-RX 1 x 12V/2A DC Power Supply 1 x IR Emitter 1 x IR Receiver 2 x Mounting Bracket Sets 1 x User Manual
• Video Input Connectors: 1 x HDMI Type A, 19-pin, female • Video Output Connectors: 1 x HDBaseT™ RJ45 connector • IR Input Ports: 1 x 3.5mm stereo jack • IR Output Ports: 1 x 3.5mm mono jack • EDID: Pin hole button
HEX70SL-RX:
• Video Input Connectors: 1 x HDBaseT™ RJ45 connector • Video Output Connectors: 1 x HDMI Type A, 19-pin, female • IR Input Ports: 1 x 3.5mm stereo jack • IR Output Ports: 1 x 3.5mm mono jack
• Power Supply: 12V/1A DC • Dimensions: 106mm x 73mm x 16mm (LxWxH) • Shipping Weight: 0.8kg • Operating Temperature: 32°F to 104°F (-5°C to +55°C) • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
