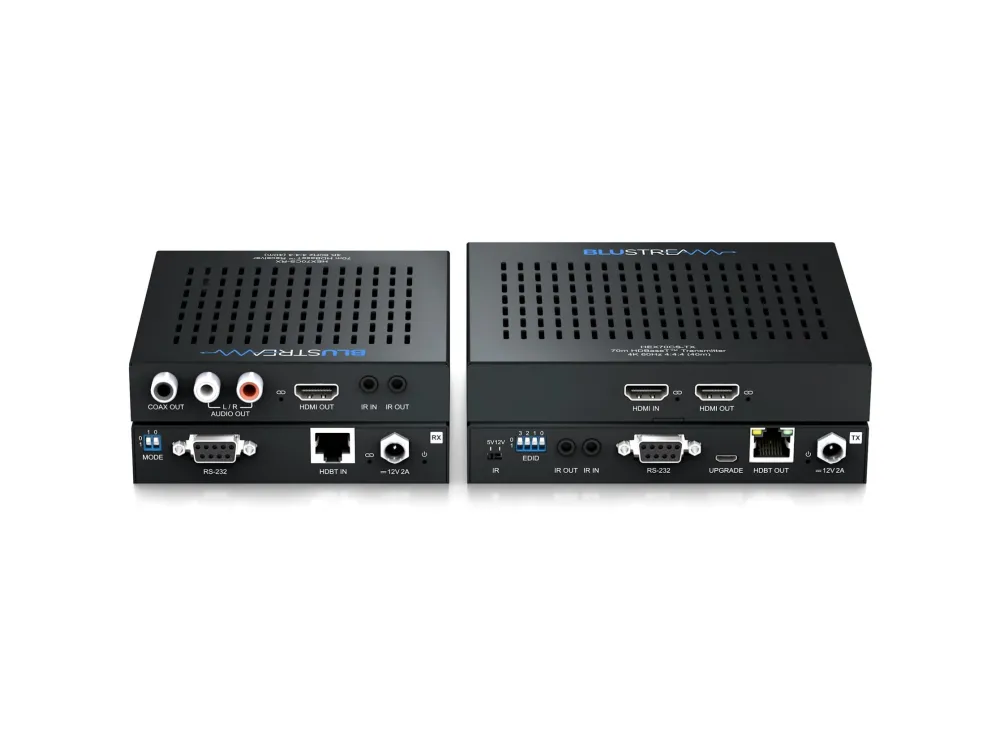

main product photo
Blustream

Blustream HEX70CS-Kit HDMI over CAT

HDBaseT™ CSC Extender Set Supporting HDMI 2.0 4K60Hz 4:4:4 up to 40m (1080p up to 70m), Bi-directional IR & RS-232, EDID Management, HDMI Loop Out, Audio Breakout, Bi-directional PoC, HDCP 2.2

Special Price $839.00 Regular Price $899.00
Add to Compare

Warranty Period : 3 years

Sold as: 1 Unit
Calculate Shipping Cost

HDBaseT™ CSC Extender Set Supporting HDMI 2.0 4K60Hz 4:4:4 up to 40m (1080p up to 70m), Bi-directional IR & RS-232, EDID Management, HDMI Loop Out, Audio Breakout, Bi-directional PoC, HDCP 2.2

Our HEX70CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology with video down conversion.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 70m (4K to 40m). The transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The receiver features simultaneous analogue stereo and digital coax audio breakout.

Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

  • Video down-conversion on HDMI receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the transmitter HDMI loop out.

  • Supports 4K 60Hz 4:4:4 UHD video up to 40m

  • Extends HDMI 1080p video up to 70m

  • Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions

  • HDMI re-clocking on the HDBaseT™ receiver to help solve HDMI HDCP, compatibility and handshaking issues

  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently

  • Supports bi-directional RS-232 pass-through

  • Supports bi-directional IR pass-through

  • Supplied with Blustream 5V IR receiver and emitter

  • Advanced EDID management

  • HDCP 2.2 compliant

Box Contents

1 x HEX70CS-TX
1 x HEX70CS-RX
2 x Mounting Brackets
1 x 12V/2A Power Supply
1 x IR Emitter
1 x IR Receiver
1 x Quick Reference Guide

Specification

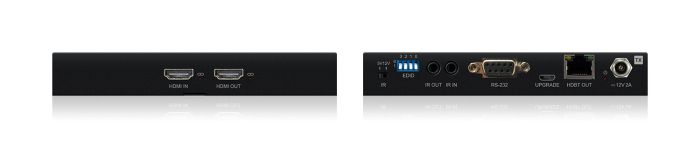

HEX70CS-TX:

  • Video Input Connectors: 1 x HDMI Type A, female

  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A female

  • RS-232 Serial Port: 1 x DB-9 female

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • EDID DIP Switch: 4-pin

    HEX70CS-RX:

  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector

  • Video Output Connectors: 1 x HDMI Type A, female

  • RS-232 Serial Port: 1 x DB-9 female

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • Audio Output Connectors: 1 x RCA (SPDIF) & 2 x Analogue RCA (Left / Right)

  • Power Supply: 12V/2A DC, screw type connector

  • Power Consumption: 12.7W

  • Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)

  • Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)

  • Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections)

  • Receiver Dimensions (W x D x H): 113 x 138 x 22mm (with connections)

  • Ind. Extender Weight: 0.35kg (excluding accessories)

  • Carton / Box Dimensions (W x D x H):

  • Shipping Weight: 1.4kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Mounting Kits Included
