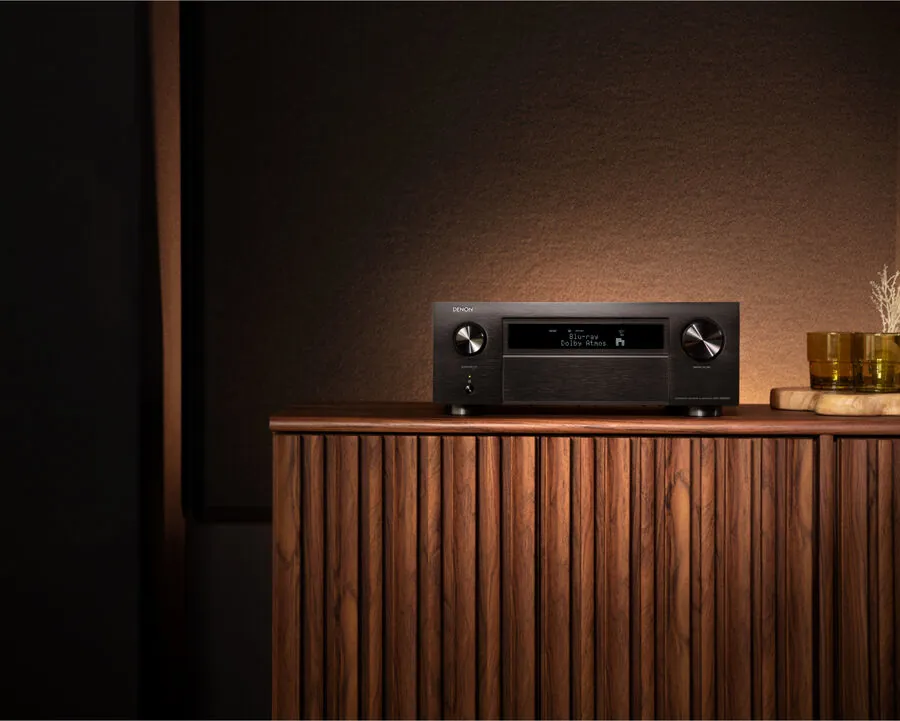

DENON AVCX6800H Home Theatre Amplifier

11.4 Ch. 205W 8K AV Amplifier with HEOS Built-in.

Designed and manufactured in Japan, the AVC-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVC-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favourite music.

$6,499.00

DESCRIPTION

The next level in home theatre

Maximize your entertainment with a full suite of audio and video technologies plus smart features

Engineered for excellence

Enveloping 3D audio

Feel like you're in the center of the action with enveloping 3D sound.

Expert ready

Take advantage of the wide variety of configuration options to best fit your space.

Denon craftsmanship

Designed and manufactured at Denon facilities in Japan to meet our highest standards.

Discover an uncompromising home theatre AV amplifier.

Optimize for your room

Enhance performance with room-correction options from Audyssey (installed) or Dirac Live and Dirac Live Bass Control (optional)

Powerful 11-channel amplifier

Featuring a sophisticated power ampliﬁer in monolithic board design, the AVC-X6800H delivers high-power performance at 205 watts per channel to ensure a dynamic and precise entertainment experience.

3D audio experience

Get enveloped in sound with Dolby Atmos®, DTS:X®, IMAX Enhanced and Auro 3D, along with Dolby Surround, DTS Neural:X and Auro-Matic upmixer to optimize legacy content.

Configuration flexibility

AVC-X6800H offers many setup options and flexibility to adjust your home theatre to meet your needs. Supports 13.4 channel processing capability, Pre-Amplifier mode, Audyssey MultEQ XT32, and optional Dirac Live and Dirac Live Bass Control upgradibility (with fee).

Advanced 8k home theatre

8K video is supported on all seven HDMI inputs and two of the three outputs. With HLG, HDR, Dolby Vision, HDR10+ and Dynamic HDR pass-through, there's no need to worry about video compatibility or picture quality.

HEOS Built-in technology

Stream music wirelessly from a variety of free and premium streaming services. Share content to HEOS devices, like Denon Home speakers, in other rooms.

Features

	Select "Standard" if you want evenly distributed bass performance. Select "Directional" if you want more directional bass seamlessly integrated into the speaker channel closest to each subwoofer.
	Stream audio or video from your favourite streaming services using your smart device. Hear audio perfectly synced to your speakers from AirPlay 2 sources. AirPlay 2 also supports multi-room audio.
	Auro-3D elevates the home theatre experience to amazing new levels by delivering the excitement of 3D sound for music, games, broadcast, and films, thanks to the Auro-Matic upmixing engine.
	Upgrade your home theatre with height speakers to unleash a fully immersive 3D audio experience, or engage all speakers to create 3D audio sensation from legacy content even without height speakers.
	Enjoy Dolby Vision content from a compatible source device and TV. Dolby Vision is a stunning HDR imaging technology that brings extraordinary colour, contrast, and brightness to the screen.
	DTS:X immersive audio content places sound where it would naturally occur in space, creating lifelike, multi- dimensional audio. DTS Neural:X upmixer offers heightened realism for legacy content.
	Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10+ pass-through to optimize shadows and highlights. HLG offers HDR technology over broadcast content.
	Play the same song in every room or select a different song for each connected room via a variety of streaming sources. Add Denon Home speakers to more rooms and control it all with the HEOS app.
	The ability to decode Hi-Res Audio ALAC, FLAC and WAV lossless files up to 24-bit/192-kHz, as well as DSD 2.8MHz and 5.6MHz tracks (SACD) lets you enjoy each note exactly as the artist intended.
	IMAX Enhanced is the latest technology from DTS that sets a new standard. See clearer and brighter picture, feel immersive lifelike audio, and experience premium content digitally remastered by IMAX.
	Enjoy pristine 8K picture quality on your 8K TV or projector. Supports both 8K pass-through and 8K upscaling of 4K content. Supports HDCP 2.3 for peace of mind when streaming copy protected content.
	Connect and play music directly from your smartphone, tablet or other compatible device
	360 Reality Audio is a new immersive music experience that uses Sony‘s 360 Spatial Sound technology to place individual sounds such as voices and instruments in a 360 degree spherical sound field.
	AL32 Processing, a Denon proprietary analog waveform reproduction technology, thoroughly suppresses noise associated with D/A conversion to bring out all the delicate nuances of your music.
	With Siri compatibility, users can play music, adjust volume, and switch inputs using voice control. AirPlay 2 features in compatible devices can also be controlled with your voice via Siri.
	With the supplied Audyssey measuring microphone, Audyssey measures all the speakers in your home theatre, and tunes the AV receiver to provide most optimal overall listening experience for your room.
	Customize the sound more precisely to the specifics of your room, harnessing the power of Audyssey MultEQ XT32 to take total control. The app is available for purchase in iOS and Google Play stores.
	Purchase a Dirac Live® Room Correction license key to apply state-of-the-art, patented algorithms to analyze and digitally reduce room impact and enhance speaker performance. Dirac Live® Bass Control for improved subwoofer performance also available with an additional license.
	Supports the latest technology on HDMI inputs and output. ARC (Audio Return Channel) or eARC (Enhanced ARC) makes playing TV audio through your AV receiver simple with just a single HDMI connection.
	Pre-Amplifier Mode lets your Denon act as an AV preamp with the latest HDMI connectivity, providing a cleaner signal path and more tolerance in clipping level by disconnecting internal amplifiers.
	Award-winning guided Denon Setup Assistant provides simple, clear instructions to get started. Just connect your AV receiver to your TV and follow the instructions on the TV screen.
	Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT) and Auto Low Latency Mode (ALLM) for smooth, lag- free gaming experience when connected with the compatible gaming devices.
	This AV receiver supports two source, two-zone audio. Enjoy surround sound in the main room and a separate source in the second room, or play the main audio source so everyone in your home can enjoy.

Specifications

Specification

Multichannel Surround
DTS	DTS HD Master DTS:X DTS:X Pro DTS Neural:X DTS Virtual:X
IMAX Enhanced	Yes
Dolby	Dolby TrueHD Dolby Atmos Dolby Atmos Height Virtualization Dolby Atmos Music Dolby Surround
Auro 3D	Yes
360 Reality Audio	Yes
MPEG H	Yes
Multichannel Stereo	Yes
Max. Number of processing (preamp) channels	13.4
Sound Enhancements
Mono Block Power Amp Construction	Yes
Discrete Power Amplifier	Yes
D.D.S.C. HD Digital	Yes (32bit)
Pure Direct	Yes
Gold Plated RCA Terminals	Yes
Clock Jitter Reducer	Yes
Alpha Processing	AL32 Processing Multichannel
Audyssey	MultEQ XT32 Dynamic EQ Dynamic Volume LFC
DIRAC Live	Upgradeable
Compressed Audio Restorer	Yes
Network
Media Server	Yes
HEOS Wireless Multi-Room Technology	Yes
Bluetooth Re-transmit for Bluetooth headphones	Yes (With volume control)
Smart Assistant Compatibility	Alexa Google Voice Assistant Apple HomePod
Lossy Format Support	MP3 WMA AAC
Lossless Format Support	FLAC HD (24bit, 192kHz, Gapless) ALAC (24bit, 192kHz, Gapless) WAV (24bit, 192kHz, Gapless) DSD (2.8MHz, 5.6MHz, Gapless)
Apple AirPlay	Yes, AirPlay 2
Internet Radio	TuneIn
Streaming Services	Spotify Connect Pandora SiriusXM Amazon Music HD Amazon Music Tidal Deezer iHeart Radio Napster SoundCloud Mood Mix
Roon Tested	Yes
App Control	HEOS Denon AVR Remote
Network Interfaces	RJ45 Ethernet Wi-Fi Bluetooth
HDMI
Inputs	7
HDMI Version	2.1
HDCP	2.3
Outputs	1x Main Zone with eARC 1x Main Zone Sub 1x 2nd Zone
Video Conversion	Analogue to HDMI
Scaling	Up to 8K
HDMI Features	8K 60Hz 4K 120Hz 3D CEC ARC eARC HDR ALLM VRR QFT DSD over HDMI Auto LipSync
HDMI Passthrough in Standby	8K 60Hz 4K 120Hz 3D ALLM VRR QFT
Multiroom / CI
Multiroom Zones	3
Zone Audio Source	HDMI (2ch) Optical (2ch) Coax (2ch) Network USB Analogue
Zone Audio Output	Speaker (assignable) RCA Pre-Out
Zone HDMI Output from HDMI Source	Yes
Control Features	IP Control RS232 Control Web Control App Control Remote In/Out 3x 12V DC Trigger Output
HDMI Diagnostics	Yes
Others
Auto Speaker Setup by Microphone	Audyssey MultEQ XT32 Dirac Live (upgrade)
Front Display	2 Line FLD
Graphical User Interface	Modern HD GUI in 3 languages
Setup Assistent	Yes
Quick Select Plus	Yes
Firmware Update	Network USB
Variable Crossover	Yes
Optimized Bass Redirection	Yes
Bass Sync	Yes
ECO Mode	Yes
Auto Power Off	Yes
Sleep Timer	Yes
Inputs / Outputs
Composite Video	2 Inputs
Component Video	1 Input
HDMI	7 Inputs 1 Main Zone Output with eARC 1 Main Zone Sub Output 1 2nd Zone Output
Multi Room Video Out	2nd Zone HDMI Output
Analogue Audio In	6 RCA Inputs 1 RCA Input for Tuner 1 MM Phono Input
Phono	Moving Magnet, RCA
Digital Audio In	2x Optical TOSLink Inputs 2x Coaxial Inputs
Multi Room Signal Output	2nd Zone RCA Output 3rd Zone RCA Output
Multichannel Pre-Out	13.4 channels RCA
Subwoofer Output	4 Independent RCA
Speaker Terminals	13x Gold Plated Screw Terminals (11 amplifier channels)
Assignable Speaker Functions	Speakers A/B Height Channels Bi-Amp Drive 2nd Zone 3rd Zone
Front Terminals	USB-A port (mass storage, accessible via HEOS app)
USB Power Supply on Rear Panel	Yes
Specifications
Number of Power Amplifiers	11
Power Output	8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive 140W 6 ohm, 1 kHz, 0.7% 2ch Drive 175W 6 ohm, 1 kHz, 10% 1ch Drive 250W
General
Metal Front Panel	Yes
System Remote Control	RC-1256
Power Consumption	750W PEAK 110W Idle 65W Idle ECO On 0.1W Standby 0.5W Standby with CEC Less than 2.0W Standby with Networking
Dimensions	435mm Width 389mm Depth 168mm Height 236mm Height with antennas vertical.
Weight	15.6kg
Power Supply	AC, 230V, 50Hz
Speaker Impedance	4–16Ω/ohms
Input Sensitivity	200 mV
Frequency Response	10 Hz–100 kHz — +1, –3dB (Direct mode)
S/N Ratio	102dB (IHF-A weighted, Direct mode)
What's in the Box	Main unit Remote control Batteries Wire labels Quick start guide Audyssey microphone Card board microphone stand 2 External Detachable Antenna AC cord
