MARANTZ AV10 15.4 Reference AV Processor Reference 15.4 Channel Balanced Processor with Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced and 8K Ultra HD, and HEOS® Built-In streaming. AV 10 is a referencelevel AV processorMADE IN JAPAN!
$13,000.00
Warranty Period : 5 years
The AV 10 represents the pinnacle of performance and performance for reference-class home theater systems. It features legendary Marantz discrete HDAM circuitry, seven 8K UHD-compatible HDMI inputs, HEOS® Built-in, room acoustics correction with Audyssey MultEQ XT32, Dolby Atmos and DTS:X Pro, Auro-3D, as well as multiple inputs and balanced preamp outputs for all channels and four independent subwoofers.
Detailed and captivating sound for a special listening experience. 17.4 channel output supports flexible speaker layouts. Decodes Dolby Atmos, DTS:X Audio and Auro 3D. Seven HDMI inputs (all 8K) and three outputs for full-resolution video. HEOS® Built-in lets you stream music from your favourite sources over WiFi. Tuned by the Soundmaster for warm, rich and detailed sound. Features Exquisite Design

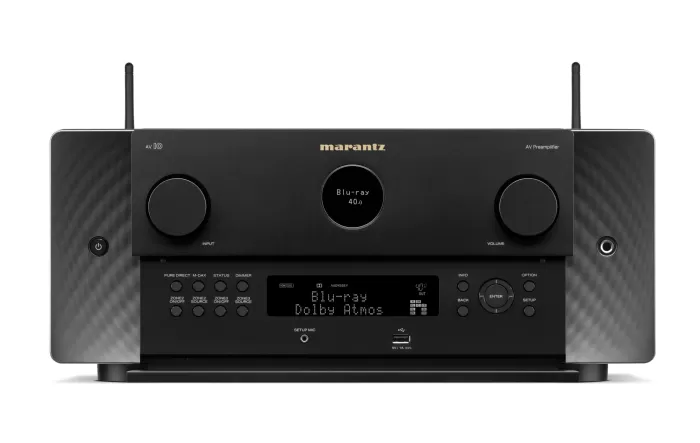

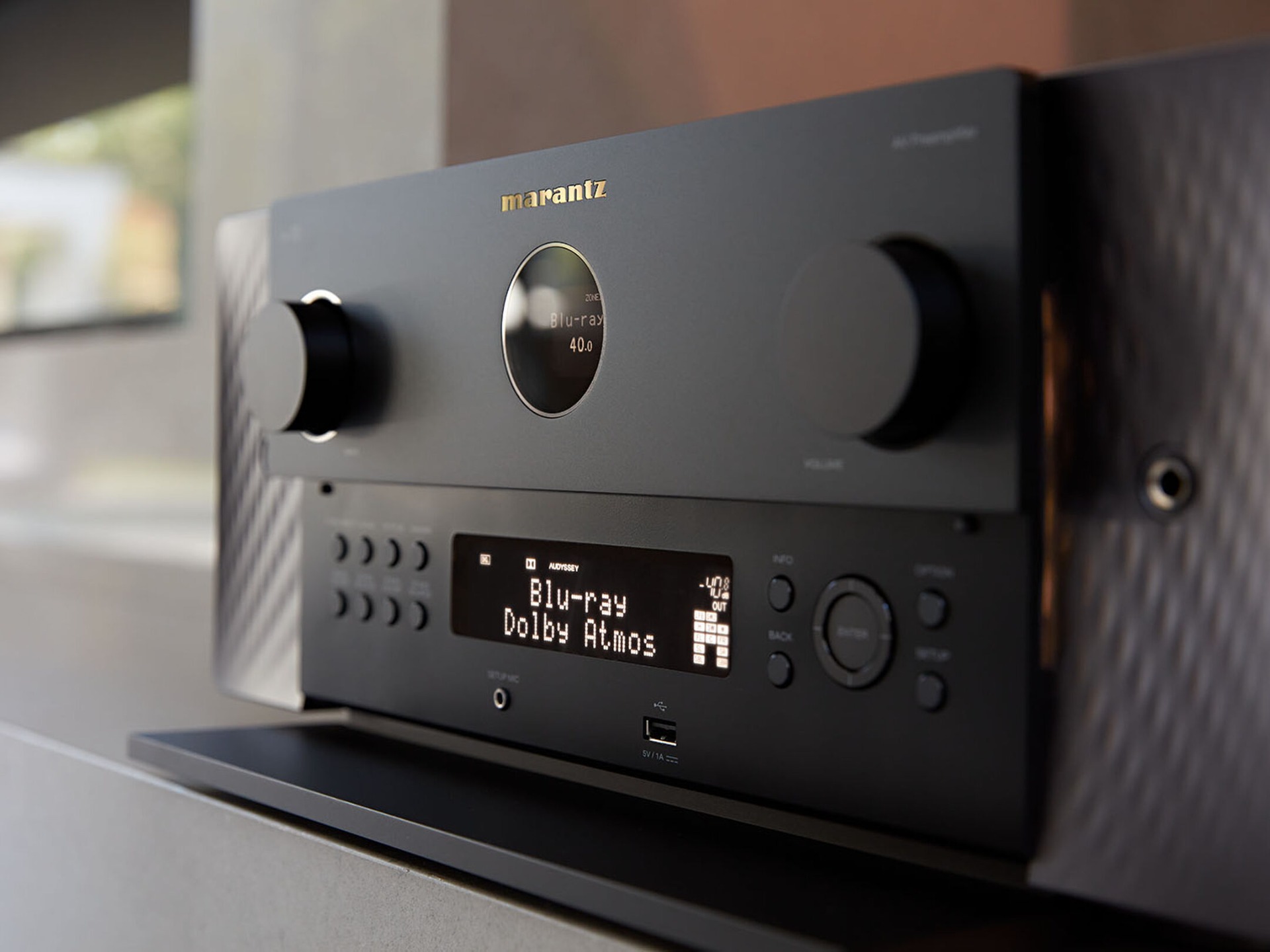

A modern expression of timeless design principles, AV 10 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.
Peerless Performance Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound. Soundmaster Tuned The Marantz Sound Master meticulously tuned AV 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.
Technology Master AV 10 comes packed with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
Specification
Technical Specifications Multichannel Surround DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / Yes DTS Neo:X / DTS Neural:X No / Yes (15ch) DTS Virtual:X Yes IMAX Enhanced Yes Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music Yes / Yes / Yes / Yes Dolby ProLogic Ilz / Dolby Surround No / Yes Auro 3D Yes 360 Reality Audio / MPEG H Yes / Yes Multichannel Stereo Yes Max Number of Processing (Preamp) Channels 15.4
Sound Enhancements Copper Plated Chassis Yes Power Transformer: Toroidal / EI Yes / No Current Feedback Topology Yes Hyper Dynamic Amplifier Modules (HDAM) Yes Pure Direct Yes Gold plated RCA terminals Yes Clock Jitter Reducer Yes Audyssey MultEQ XT32 Audyssey Dynamic EQ / Dynamic Volume Yes / Yes Audyssey LFC Yes Dirac Live upgradability Yes Compressed Audio Enhancer: MDAX2 Yes
Network HEOS Multi-room and Streaming Yes Bluetooth Re-transmit for Bluetooth headphones Yes Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes Network Audio Sharing Yes Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes Lossless formats: FLAC / ALAC / WAV Yes / Yes / Yes Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes DSD Audio Streaming Yes (2.8/5.6MHz) FLAC HD 192/24 Yes WAV 192/24 Yes ALAC 192/24 Yes Gapless Playback Yes (FLAC, WAV ,ALAC ,DSD) AirPlay Audio Streaming Yes (AirPlay2) Internet radio Yes (TuneIn) Spotify* Yes (connect) Pandora Yes SiriusXM Yes Other Streaming Services * Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix Roon Tested Yes Compatible with Remote APP for Smart Phones Marantz AVR Remote Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle Ethernet Ports Yes Wi-Fi Yes Bluetooth Yes
HDMI HDMI Inputs: Back / Front 7 / No HDCP2.3 support Yes HDMI Outputs: Main / Zone 2 / 1 HDMI to HDMI Scaling 1080P/4K to 8K GUI Overlay on HDMI Yes HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps) HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes Enhanced ARC Yes HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes ALLM (Auto Low Latency Mode) Pass-through for gaming Yes Variable Refresh Rate / Quick Frame Transport Yes / Yes 3D Signal Pass-Through Yes 8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes 4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes HDMI pass-though in standby mode Yes Picture Adjust / Noise Reduction No / No CEC Yes DSD Audio Capability Yes Audio Return Channel Yes Auto LipSync Yes
Multi-Room / CI HEOS Multi-Room Integrated Yes HEOS Link Compatibility: IR/ IP Yes / Yes Multi-Room Zones 3 Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes Zone Audio Output: Speaker / Preout No / Yes Zone HDMI Output from HDMI Source Yes IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes IR Flasher In Yes Marantz Remote Bus Yes DC Trigger Output 2 HDMI Diagnostics Yes
Others Auto Speaker Setup by Microphone Audyssey MultEQ XT32 Dirac Live (upgrade) Front Display 2 line FLD + port hole OLED Graphic User Interface - GUI Modern HD GUI GUI Languages 3 Setup Assistent Yes Smart Select Yes Firmware Update by Network / USB Yes / Yes Variable Cross Over Yes Optimized Bass Redirection Yes Bass Sync Yes Auto Power off Yes Sleep Timer Yes
Inputs/Outputs Composite In / Out No / No Component In / Out No / No HDMI In / Out 7 / 3 Multi-Room Video Out: Video / HDMI No / Yes Analogue In / Out 5 (1x XLR) / No Phono (MM) In Yes Digital In: Optical / Coaxial 2 / 2 Multi-Room Out: analog / digital 2 / No Multichannel Pre Out Yes (17.4 RCA & 17.4 XLR) Subwoofer Out 4 (independent) Speaker A / B assignable pre out Bi-amp drive assignable pre out Multi-Room Speaker Terminal pre out Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes USB Audio / Made for iPod / Made for iPhone Yes / No / No AM/FM Tuner Yes
General Metal Front Panel Yes System Remote Control RC047SR Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes Power Consumption in W 100 Standby Consumption in W 0.2 CEC Standby Consumption in W 0.5 Network Standby Consumption in W Less than 2.0 Maximum Dimensions Antenna:Horizontal:(W x D x H) in mm Antenna:Vertical :(W x D x H) in mm W/o Antenna:(W x D x H) in mm 442 x 503 x 189 442x 503 x 252 442 x 480 x 189 Weight in kg 22.4 What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
