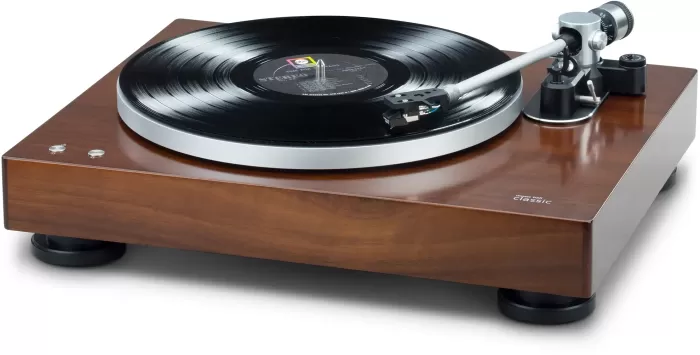

MUSIC HALL Classic Turntable Semi Automatic turntable with auto lift and auto stop. Built in Phono Pre-amplifier.
$1,099.00
Warranty Period : 3 years
All About Music Hall Classic Turntable
The Music Hall Classic turntable is a modern take on a classic design, inspired by turntables of the past and built with the best of today's technology. This 2-speed belt-driven turntable comes complete with a tonearm, mounted Music Hall Spirit cartridge, and built-in phono preamp, delivering exceptional sound quality with precision-aligned speed control. With adjustable vibration-damping feet and semi-automatic operation, the Classic is both easy to use and stylish, featuring a dark walnut wood veneer finish that complements any room. The built-in phono preamp also allows for easy connection to your existing system, making the Classic the perfect choice for anyone looking for an affordable yet high-quality turntable.
Features Factory-mounted Music Hall Spirit moving magnet cartridge on removable head shell Switchable built-in phono preamp Aluminum platter with felt mat Tonearm automatically lifts and platter stops spinning at the end of a side Medium-density fiberboard (MDF) base with adjustable vibration damping feet Dark walnut wood veneer Electronic speed control (33-1/3 and 45 rpm)
Specification GENERAL SECTION Power Supply 12V DC, 2.0A Center Positive Dimensions 435mm Width 367mm Depth 157mm Height Weight FEATURES Turntable Type Cartridge Type Moving magnetic cartridge Motor Driving Method Turntable Platter 305mm dia. Aluminum die-cast Speed Performances Speed Tolerance Channel Separation More than 18 dB at 1KHz (CD-4005) Channel Balance Within 2.5 dB at 1KHz (CD-4005) Phono Output Level 2.48~4.95 mV at 1KHz 5cm/sec (CD-4005) Line Output 156~312 mV at 1KHz 5cm/sec (CD-4005) RIAA Wow and Flutter TYPICAL: Less than 0.12% WTD at 3KHz RMS(CD-4005) LIMIT: Less than 0.15% WTD at 3KHz RMS(CD-4005) S/N Ratio for MM TYPICAL More than 65dB (DIN-B) (SS-4242) LIMIT More than 62dB (DIN-B) (SS-4242) Noise floor Power on, Platter stop and cartridge touch vinyl. Line output more than 80dB (with 20KHz Low Pass Filter/ "IHF-A" weighted). Power on, Platter rotate and cartridge not touch vinyl. Line output more than 87dB (with 20KHz Low Pass Filter/"IHF-A" weighted). Cartridge: CN-5534 Output Voltage 3.5mV +/- 3dB at 1KHz (3.54cm/sec) Channel Separation Channel Balance Within 2.5dB at 1KHz(AT6606A) Frequency Response 0 +/- 3dB at Measurement point 10KHz/1KHz Suggested stylus force TONEARM SECTION Type Static balanced straight shaped w/soft-damping control Effective Arm Length Arm Lifter Oil damper type with Auto Lifter-up function Time for Lifter Down 1~3 sec (At 2.0g stylus force) Height of Needle Overhang Offset angle Tracking Error Angle Stylus Force adjustment method Range of Needle Pressure Adjustment 0~4g (0.5g/ Scale Work Smoothly) Range of Anti-skating Adjustment Bearing (Vertical) Head Shell Connector for Head Shell ACCESSORIES SUPPLIED Instruction manual x 1 Counter weight x 1 Platter mat x 1 Headshell assembly x 1 45 rpm adaptor x 1 Power Adapter x 1 Hinge x 2 Transfer plug adaptors x 3 2P RCA C able x 1 Dust cover x 1 Platter + Belt x1 NOTES The specifications are subject to change to any improvement by negotiations in advance. The parts are subject to change to any improvement within the range of the specifications.
