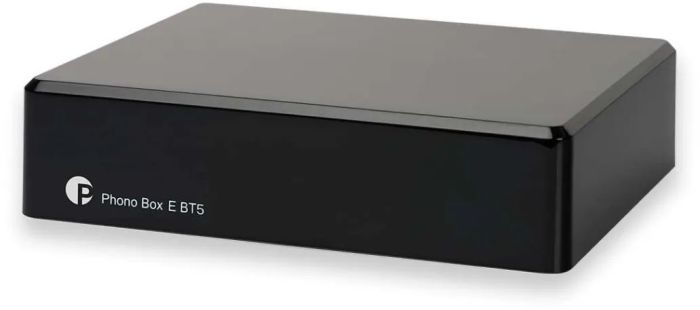

PRO-JECT Phono Box E BT5

Phono Pre-Amplifier with Bluetooth Output

$299.00

Stream your turntable wirelessly

Wireless Bluetooth 5.2 streaming with aptX Adaptive and HD of built-in Phono preamplifier and additional line source

After the big success of our VT-E BT we decided to create a phono preamplifier that turns any turntable (with moving magnet cartridge) into a modern Bluetooth streamer.

Phono Box E BT5 offers two separate inputs, a phono and a line level input, as well as two separate outputs. It can be used as an ordinary MM phono stage that connects to any hifi amplifier via its line level output (3.5 mm jack) or it can be used as a Bluetooth streamer. It takes the provided analogue input signal, converts it and sends digital audio to any Bluetooth receiver within a 10 m range. Those devices could be either Bluetooth headphones, speakers or any other Bluetooth receiver.

Phono Box E BT5 is the perfect companion for all modern audiophiles who want to enjoy their vinyl hobby with the comfort of wireless streaming and in high-definition! Bluetooth 5.2 together with aptX Adaptive and aptXHD enables high-resolution formats in audiophile quality.

The Phono Box E BT5 is best paired with our BT Box E HD to ensure high-resolution transmission compatibility!

Features
  • Connect your turntable wirelessly
  • Bluetooth 5.2 streaming with aptX Adaptive and HD support
  • 2 Inputs: 1 Phono and 1 Line Input
  • Suitable for MM cartridges
  • Precise RIAA equalisation
  • Use analogue RCA & BT output simultaneously
  • Low noise circuitry
  • Internal metal shielding
  • Gold-plated RCA connectors
  • Outboard power supply included
Specification

Phono input impedance

  • 47 kohms

Phono capacitance

  • 100 pF

Gain phono

  • 34 dB

Inputs

  • 1 Phono (RCA)

  • 1 Line In (3.5 mm)

Outputs

  • 1 Line Out (3.5 mm)

  • 1 Bluetooth

Noise floor

  • 74dbA (A-weighted)

THD

  • < 0,04%

Phono/Line in max. input voltage

  • 800mV

RIAA equalisation curve accuracy

  • within 0.5 dB/20 Hz - 20 kHz

Bluetooth

  • V5.2

  • aptX

  • aptX

  • Adaptive

  • aptX HD

Outboard power supply

  • 18 V/500 mA DC

Power consumption

  • 200 mA DC

Dimensions

  • 120mm Width
  • 32mm Height
  • 100mm Depth

Weight

  • 280g Without power supply
